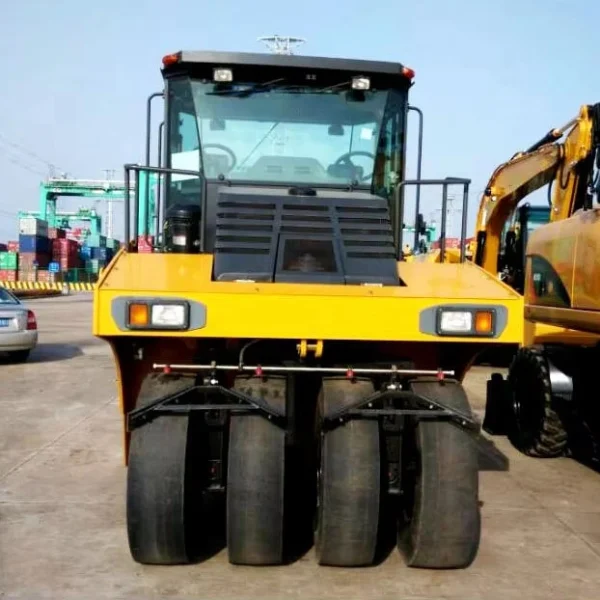

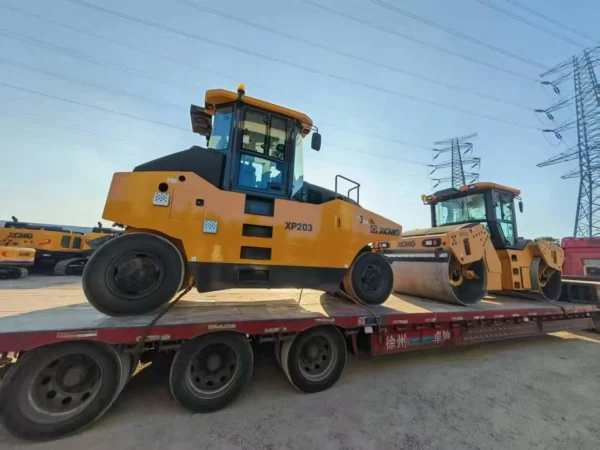

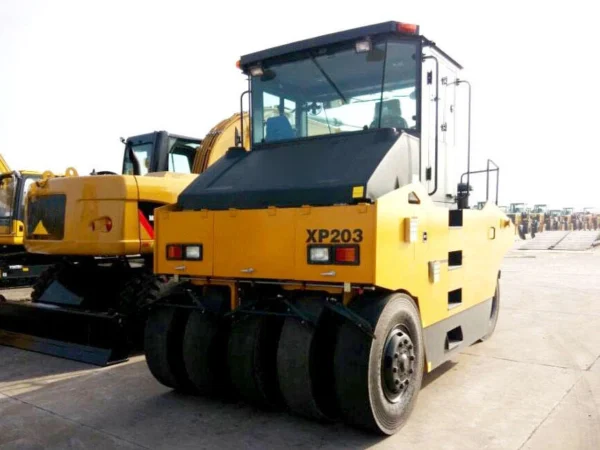

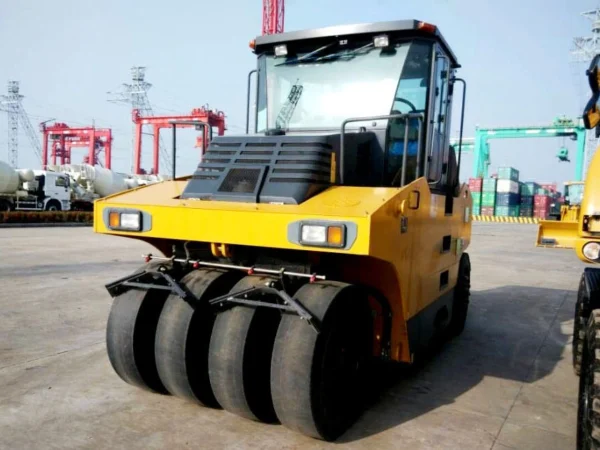

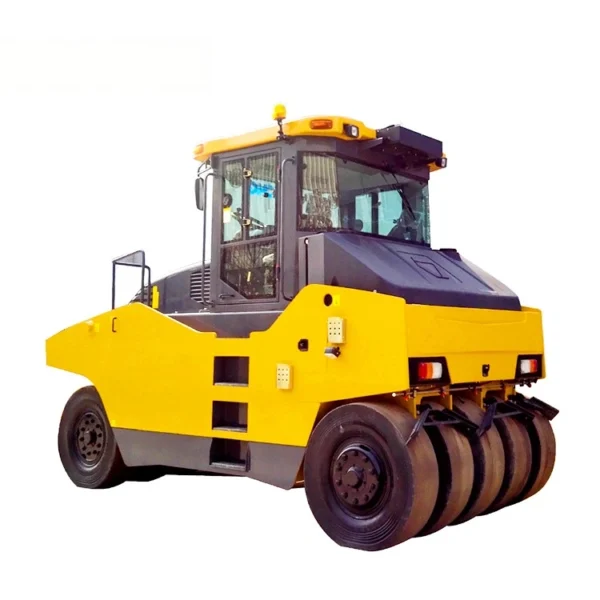

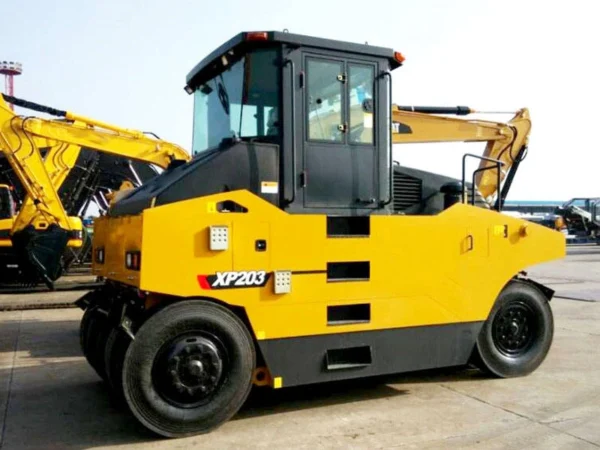

XP203 tyre roller is a large-tonnage tyre roller produced according to market requirements, which will take pneumatic tyres as working device for compacting paved materials. The tyre roller is mainly applicable for compacting operation of asphalt pavement, foundation layer, secondary foundation layer, dam and filling engineering. It is an ideal set of compacting equipment for building high grade highway, airport, port, dam and industrial construction site.
* The tyre roller is mainly applicable for compacting operation of asphalt pavement, foundation layer, secondary foundation layer, dam and filling engineering. It is an ideal set of compacting equipment for building high grade highway, airport, port, dam and industrial construction site.
* Clutch is directly installed on the engine flywheel, and the operation mechanism of main clutch is the air assisted mechanism which greatly reduces the operating force.
* Double frequency and double amplitude can meet the requirements of different working conditions; hydraulic vibration system consists of gear pump and motor to form an open system; its control mode is electronic control.
| Item | Unit | XP203 | |
| Maximum operating mass | kg | 20000 | |
| Ground pressure | kPa | 200~ 400 | |
| Travel speed | Gear I | km/h | 4 |
| Gear II | km/h | 8.3 | |
| Gear II | km/h | 17.5 | |
| Theoretical gradeability | % | 20 | |
| Minimum turning radius | mm | 7330 | |
| Minimum ground clearance | mm | 260 | |
| Compaction width | mm | 2250 | |
| Overlapped volume of roller | mm | 45 | |
| Tires | Specification | 11.00-20 | |
| Quantity | Front 4 rear 5 | ||
| Engine | Type | SC4H115.4G2B | |
| Rated power | kw | 86 | |
| Fuel consumption | g/kw.h | ≤205 | |
| Total length | mm | 4800 | |
| Total width | mm | 2356 | |
| Total height | mm | 3330 | |
| Diesel tank volume | L | 150 | |
| Water tank volume | L | 650 | |
