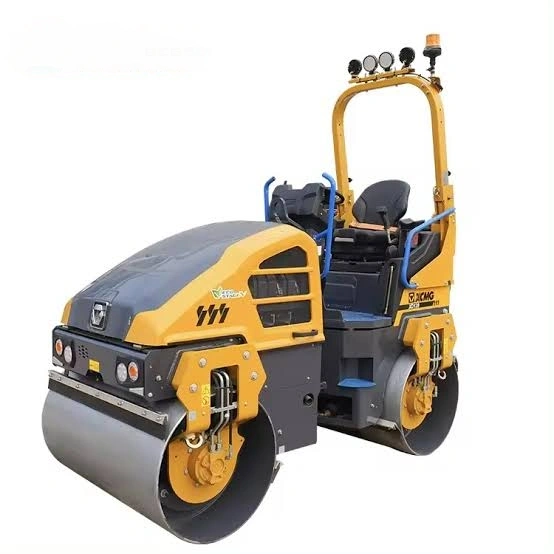

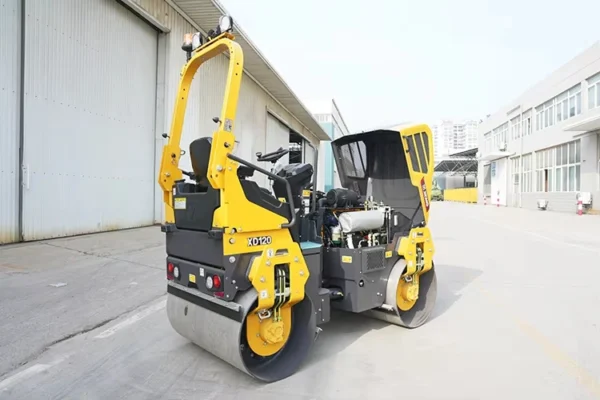

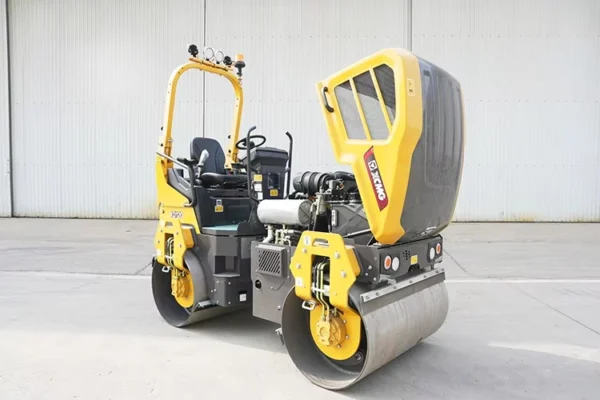

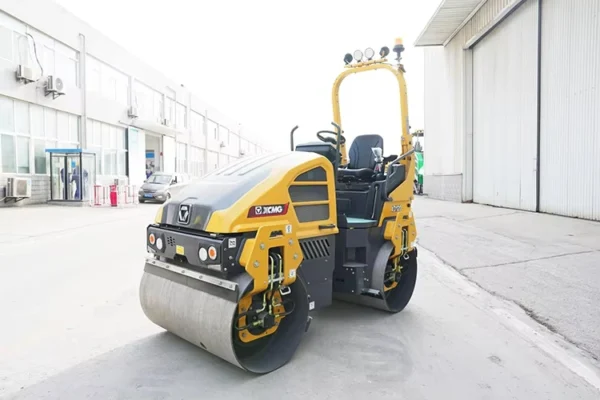

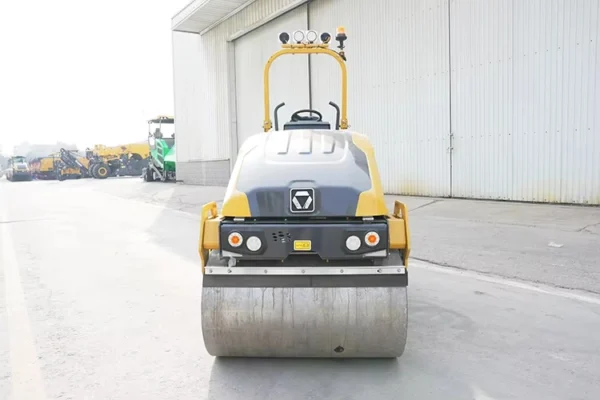

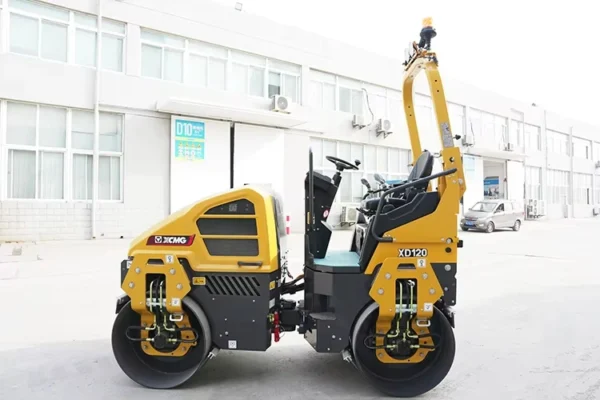

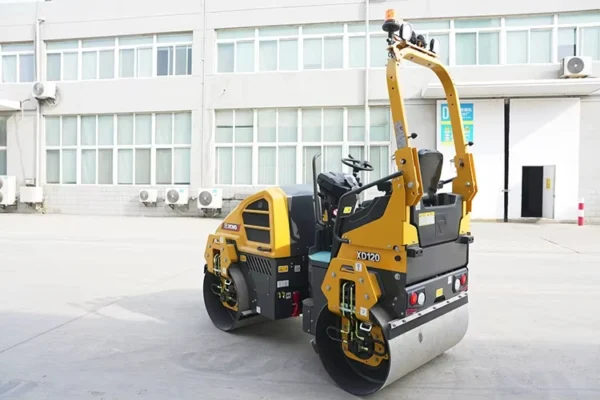

XD120 vibratory tandem roller features small amplitude, high frequency vibration and centrifugal force. It is mainly applicable to compaction work on asphalt top layer of newly built pavement and thinner stable soil pavement, and road maintenance work. With compact structure, high flexibility, small blind area, high operating comfort, it is an ideal compaction equipment for municipal maintenance and highway custody.
Bilateral access, bright color paint, ergonomics design principle. Spacious operating platform provides enough space for operator’s movement, operator’s seat has three-level shock absorption. Foldable CE ROPS provides safety protection under emergency. Dual-frequency single-amplitude vibration exciter provides two kinds of exciter forces for different working conditions. 67Hz high-frequency vibration, high and low frequency with traveling speed is suitable for compaction of different materials.
| Item | Content | Unit | XD120 |
| Weights | Operating weight | kg | 2850 |
| Maximum operating weight | kg | 3450 | |
| Front axle weight | kg | 1350 | |
| Rear axle weight | kg | 1500 | |
| Static linear load | N/cm | 110/122 | |
| Maneuverability | Operating speed | km/h | 0-10 |
| Gradeability | % | 30 | |
| Minimum turning radius(outer) | mm | 3700 | |
| Minimum ground clearance | mm | 275 | |
| Wheel base | mm | 1773 | |
| Steering angle | ° | ±32 | |
| Oscillation angle | ° | ±8 | |
| Compaction parameters | Vibration frequency | Hz | 63/67 |
| Nominal amplitude | mm | 0.5 | |
| Excitation force | kN | 30/39 | |
| Drum diameter | mm | 720 | |
| Drum width | mm | 1200 | |
| Capacities | Fuel tank | L | 35 |
| Water tank | L | 210 |
