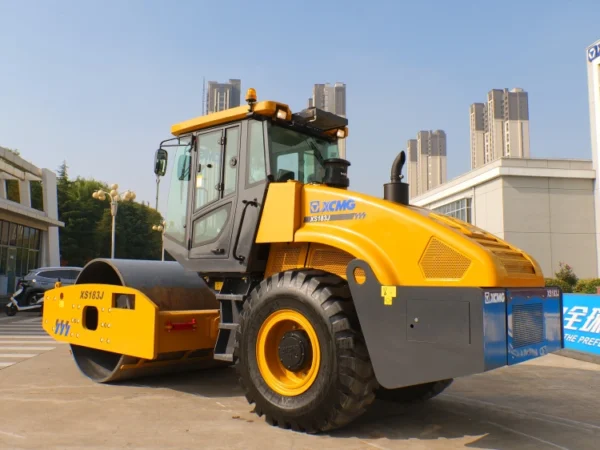

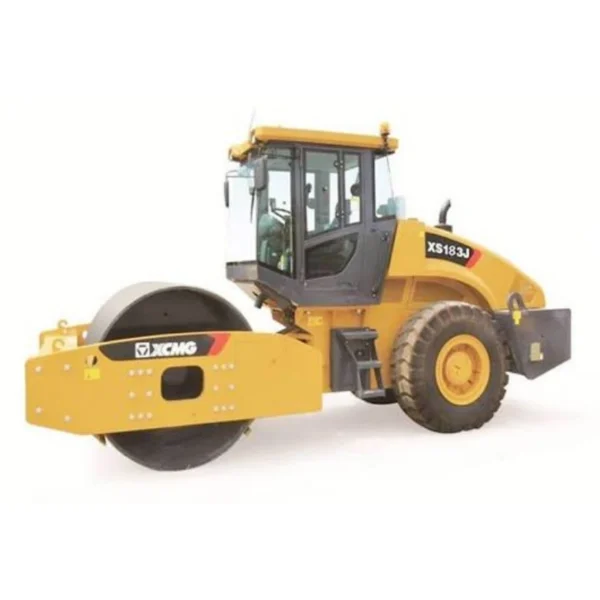

The XS183J Heavy-duty multi functional vibratory roller is highly effective in compacting a variety of materials, including
pebbles, sandy soils, moraine soil, blasting rock, and clayey soil. Its wide range of applications include compaction of concrete and stabilized soil base materials in large-scale construction projects such as highways, airports, harbors, dams, and industrial sites, making it an ideal compaction tool for these high-stress environments.
- Overall parameters reasonably matched and optimized, low-speed engine and hydraulic damping control technology contributes to significant reduced consumptions and emissions.
- Centered static and dynamic forces and optimized transmission system effectively improves compaction performance and efficiency.
- Exclusive open loop two-frequency vibration system enables wide-ranging applications.
- Container transportable.
- Detachable cabin with ROPS, safe and reliable, easy to disassemble and assemble.
| Item | Data |
| Engine model | SC7H160.2G3 |
| Rated speed | 1800r/min |
| 93Rated power | 118kW |
| Operating weight | 18000kg |
| Max. Operating weight | 18000kg |
| Operating speed | 2.78/5.43/11.51km/h |
| Drum diameter | 1523mm |
| Drum width | 2130mm |
| Ground clearance | 470mm |
| Vibration frequency | 28/33Hz |
| Fuel tank | 310L |
| Tire pressure | 250-350kPa |
