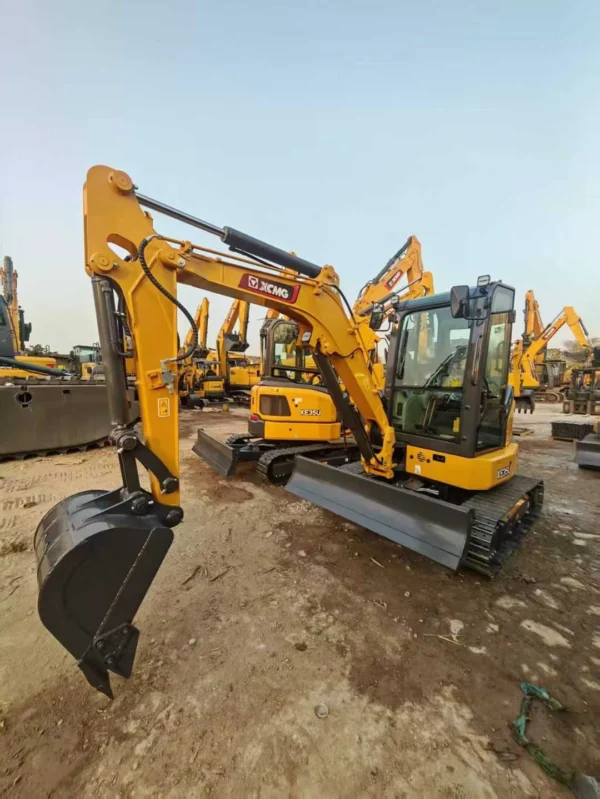

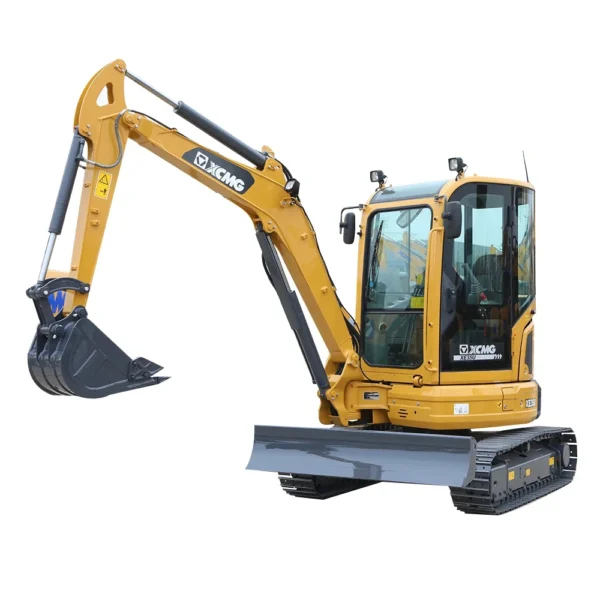

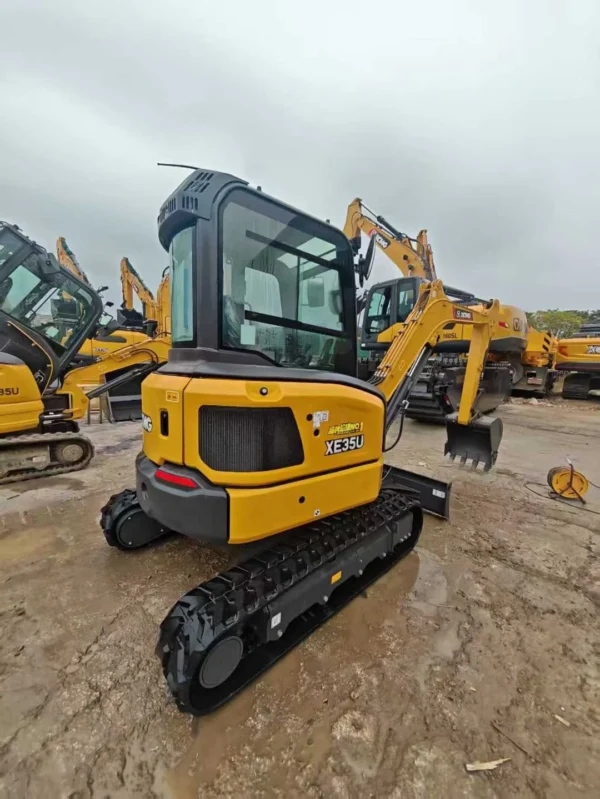

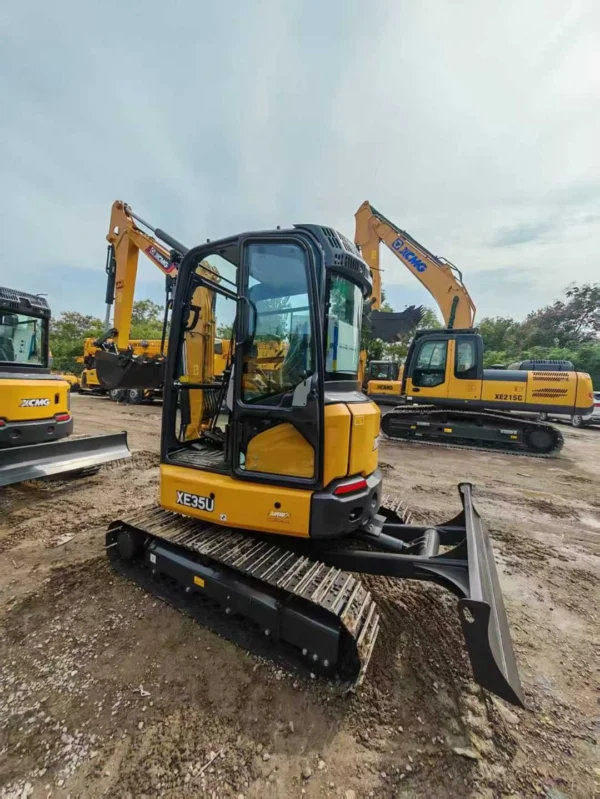

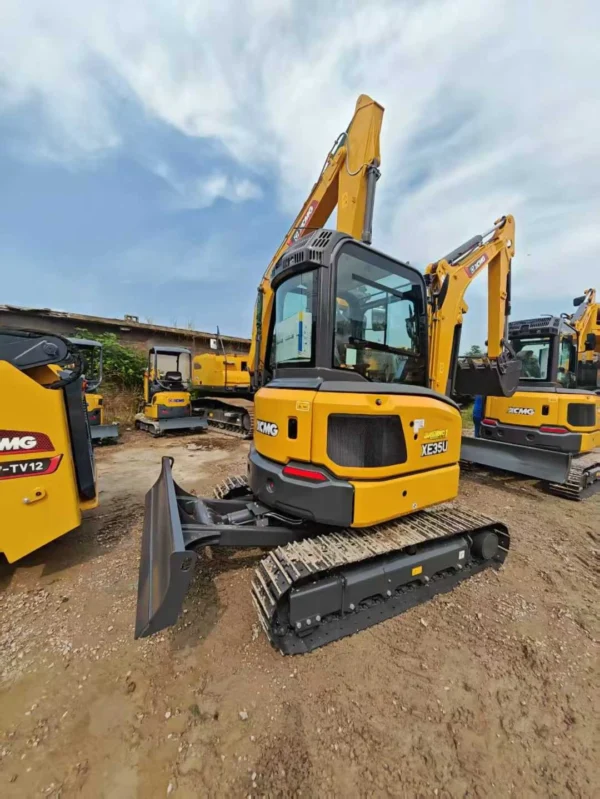

XCMG XE35U 3.5 Ton Mini Excavator for Sale

  • Direct factory pricing with no middleman markup
  • Rigorous quality inspection before international shipping
  • Full warranty and 24/7 technical support
  • Comprehensive global logistics and customs clearance
  • Certified equipment meeting international safety standards

XE35U hydraulic excavator cooperates with multi-functional working tools to complete tasks such as excavation, loading, leveling, trenching, crushing, drilling, pinching, lifting, etc. It is widely used in the construction and production of hydropower, transportation, municipal, garden, farmland transformation, oil pipelines, etc.

Advantages and highlights:
* More energy-conservation and environmental protection

By adopting Yanmar engine meeting national stage III emission standard, mechanical fuel injection pump has reliable performance. With compact size, the maintenance is convenient. Enough low torque reserve can ensure strong power. High reliability can reduce the maintenance cost.

* More efficient return

Rear-end swing radius adopts tailless design, which can ensure that the tail part will not collide with obstacles under narrow working conditions. Deflectable working device can deflect to left and right at 75° and 50° separately, which can achieve compound action with superstructure. Through swing cooperation with superstructure, digging operation parallel to the wall surface will be achieved and various kinds of working conditions can be coped with easily.

* More reliable and durable Partial strengthen the parts with great
stress on boom and arm, and meanwhile adjust the structure to disperse the stress, which makes the life longer. With standard configured new bucket, the depth of bucket is reduced and unloading material will be faster and easier.





Model Metric unit XE35U
Operating weight kg 4200
Bucket capacity m3 0.11
Engine Model   3TNV88-BPXG
Output power kW/ r/min 21.6/2400
torque/speed N.m 107.2/1444
Displacement L 1.642
Main performance Travel speed(H/L) km/h 3.6/2.2
Gradeability % 58
Rotating speed r/min 8.5
Ground pressure kPa 36.6
Bucket digging force kN 24.6
Arm crowd force kN 17.8
Appearance size Overall length mm 4960
Overall width mm 1740
Overall height mm 2535
Width of platform mm 1585
Length of crawler mm 2220
Overall width of chassis mm 1740
Width of crawler mm 300
Track length on ground mm 1440
Crawler gauge mm 1721
Clearance under counterweight mm 587
Min. ground clearance mm 297
Min. tail swing radius mm 870
Working scope Max. digging height mm 5215
Max. dumping height mm 3760
Max. digging depth mm 3060
Max. vertical wall digging depth mm 2260
Max. digging reach mm 5415
Min. swing radius mm 2170
