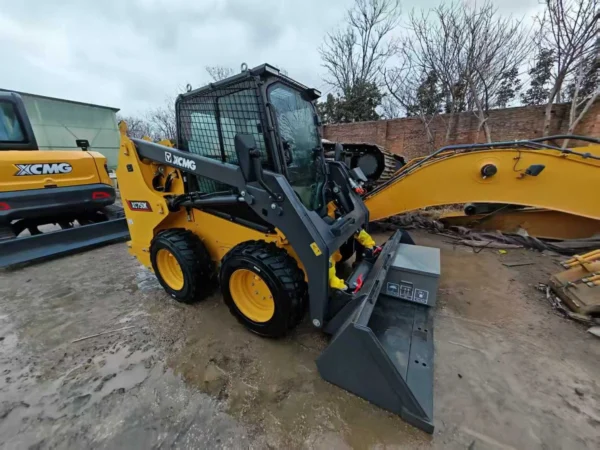

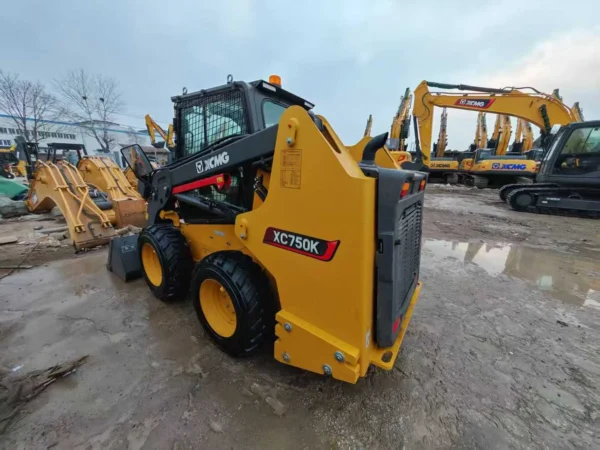

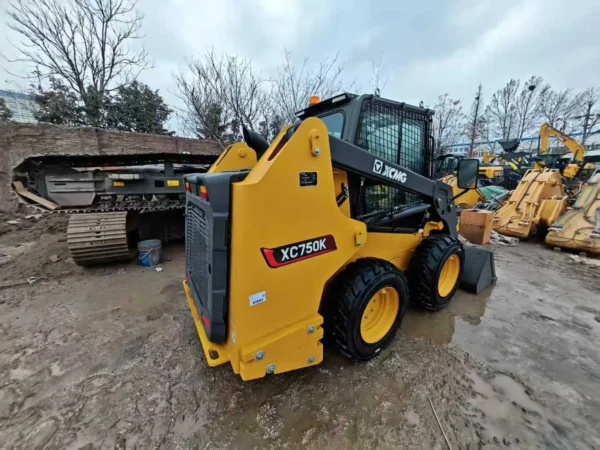

The XC750K is a new medium-sized skid steer loader of DS.The unit can be equipped with a two-speed walking configuration, a pressurized cab and a fresh air conditioning system.
The whole machine adopts a large flow system,which can meet the needs of working conditions such as clearing manure in cattle house, loose sand in bed, stacking pasture, and road cleaning.
Performance Characteristics:
1. Strong power and high energy-conservation and efficiency
* The renowned brand engine equipped features strong power, ultra-low emission, and higher fuel efficiency.
* The double speed motor with maximum speed up to 18km/h is installed to achieve high working efficiency. It can complete the site transfer rapidly and efficiently.
* It can respond faster to the needs of emergency working conditions such as rapid snow removing.
* The hydrostatic drive device is applied to realize quick change of appropriate attachments in the operation site.
2. Platform design for high reliability and firmness
* The serialization design is applied for the frame based on the skid- steer tonnage to realize high structural reliability. All critical structural parts are optimized by finite element analysis to realize reasonable stress distribution.
* The imported high-quality hydraulic parts are applied to realize higher reliability.
3. Multiple Applications:

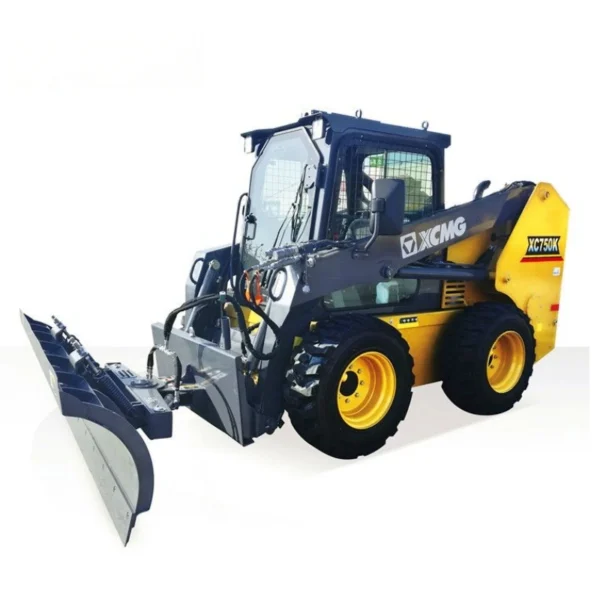

Inclined sweeper/ Snow plough/ Rotary tiller/ Closed sweeper/ Planer/ Manhole cover planer/ Breaking hammer/ Twist drill/ Continuous ditcher
| Description | Unit | XC750K | |
|
Engine |
Rated power | HP(Kw)/rpm | 67(50)/2300 |
| Emission standard | Chinese-III | ||
|
Working hydraulic system |
Standard flow | L/min | 75.9 |
| Optional high flow | L/min | 119.6 | |
| System pressure | bar | 210 | |
|
Traveling System |
Maximum traveling speed | Km/h | 12 |
| Optional two speed, maximum traveling speed | Km/h | 18 | |
| Tire specification | 10-16.5 | ||
| Control system | Operating weight | Kg | 3200 |
|
Loading performance |
Rated load | Kg | 900 |
| Static tipping load | Kg | 1800 | |
| Breakout force | kN | 20 | |
|
Overall dimensions |
Cab roof height | mm | 1950 |
| Length with bucket | mm | 3330 | |
| Dumping angle | ° | 40 | |
| Maximum dumping height | mm | 2375 | |
| Dumping range | mm | 575 | |
| Wheelbase | mm | 1027 | |
| Departure angle | ° | 25 | |
| Ground clearance | mm | 185 | |
| Wheel tread | mm | 1380 | |
| Bucket edge width | mm | 1800 | |
| Bucket capacity (High heap) | m3 | 0.45 | |
