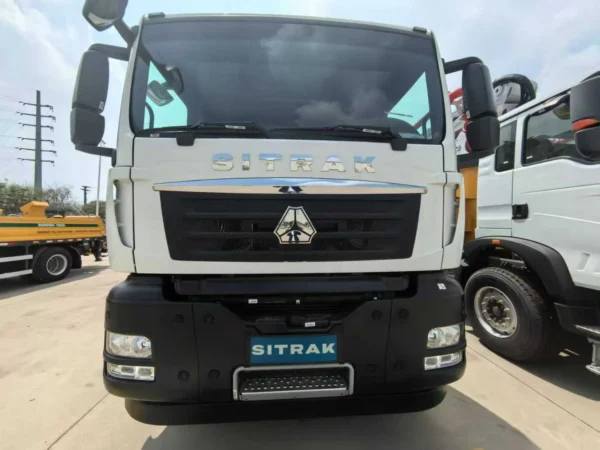

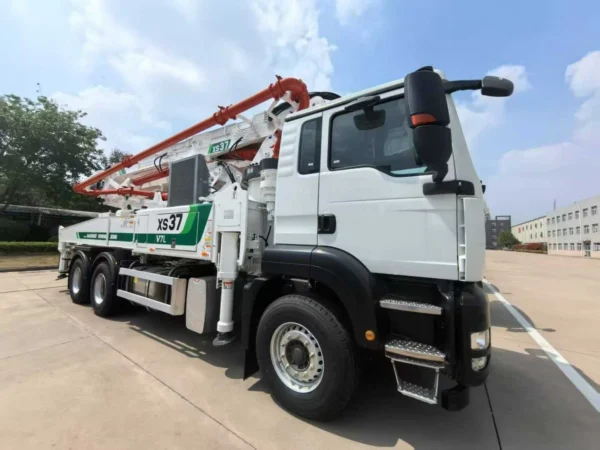

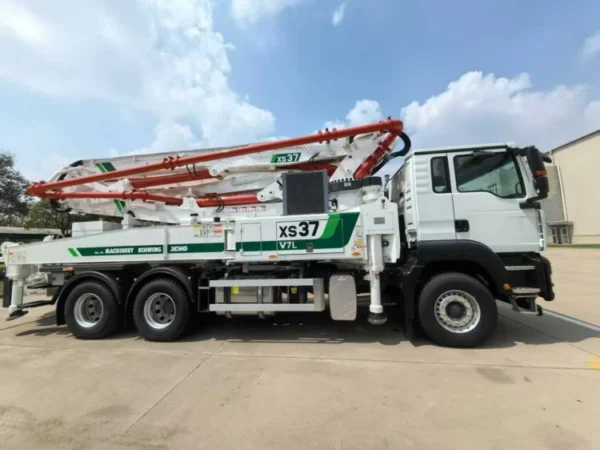

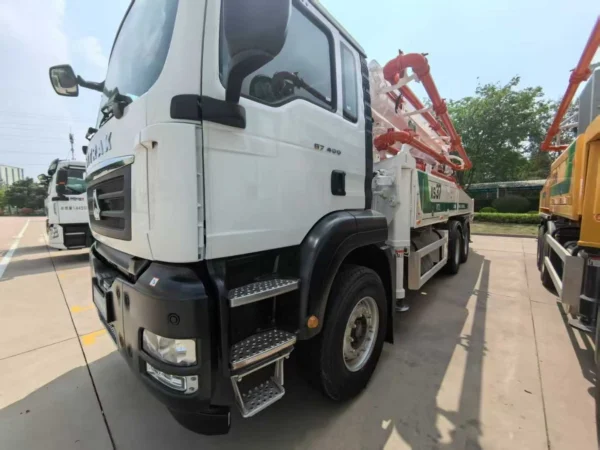

The XS37 is a diesel-driven truck-mounted concrete pump truck fitted with a 37-meter full hydraulic boom. It features outstanding long-distance pumping efficiency thanks to advanced dual-loop hydraulic technology, effectively cutting energy consumption during continuous construction work. The robust diesel engine delivers stable power for all-day pumping tasks, while reinforced boom and wear-resistant pipelines extend service life and lower breakdown frequency. With flexible boom unfolding and wide conveying coverage, this pump truck adapts perfectly to municipal engineering, residential buildings and medium high-rise construction projects. It is easy to operate and maintain, a reliable high-efficiency concrete conveying equipment for global construction contractors.
Advantages & Highlights
1.Powerful diesel engine delivers steady and sufficient power for long-time continuous pumping work.
2.High working efficiency with large concrete output, greatly speeding up construction progress.
3.Professional hydraulic system ensures stable pumping, smooth material delivery and reliable operation.
4.Adopts premium wear-resistant pipes and core parts, anti-abrasive and prolonging service life.
5.Flexible conveying range, suitable for various building sites and complex construction environments.
6.User-friendly control system and comfortable operating cabin, easy to learn and operate.
7. Low fault rate, convenient daily maintenance and reasonable overall operating cost.
| Item | Unit | Parameter |
| Max. speed | km | 90 |
| Min. turning diameter | m | 18.4 |
| Brake distance | m | 7 |
| Approach angle | ° | 31 |
| Departure angle | ° | 12 |
| Chassis model | CXZ51Q | |
| Total weight | kg | 28150 |
| 1st axle load | kg | 6780 |
| 2nd, 3rd axle load | kg | 2120 |
| Engine model | 6WF1 | |
| Max. Engine power | kW | 287 |
| Max. Engine torque | N.m | 1862 |
| Max. grade-ability | % | 38 |
| Fuel consumption limit | L/100km | 34 |
| Outline dimensions (Length´ Width ´Height) | mm | 11990´2490´3900 |
| Theoretical output | m3/h | 138/90 |
| Max. delivery pressure | MPa | 8.7/13 |
| Reach height | m | 37.4 |
| Reach depth | m | 23.7 |
| Front outrigger transverse span | mm | 7280 |
| Rear outrigger transverse span | mm | 6600 |
| Outrigger longitudinal span | mm | 6860 |
| Delivery pipe diameter | mm | 125 |
| Remote control distance | m | 100 |
| Placing boom slewing range | ° | 370 |
